Base Bear6000

FOR THE HEAVY DUTY WORK

For lifting concrete slabs

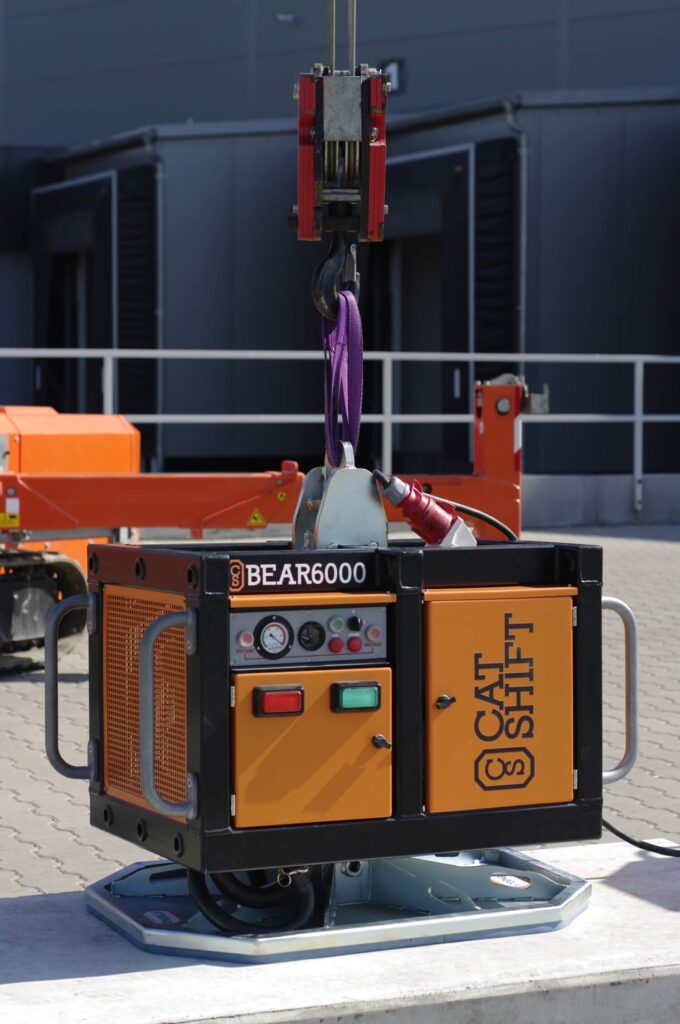

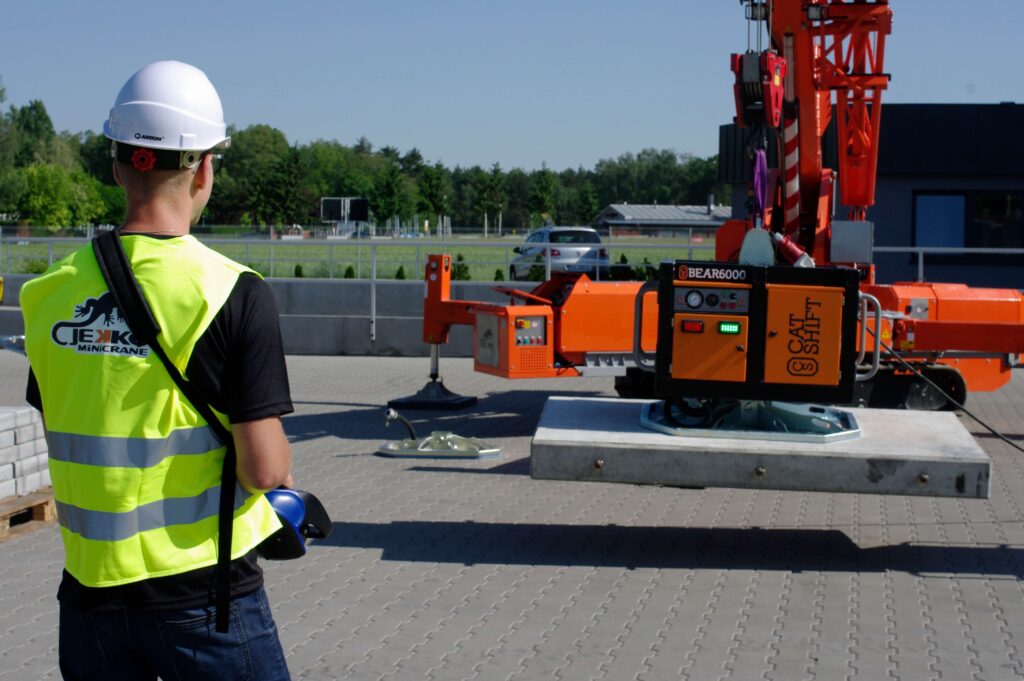

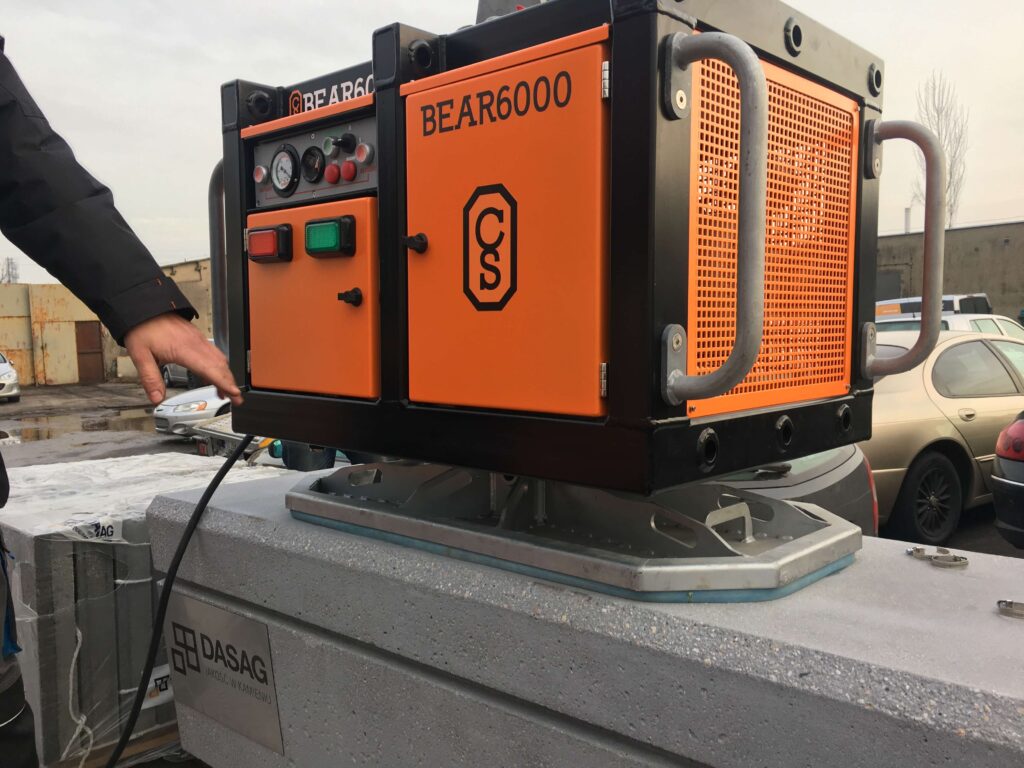

Bear 6000 concrete lifting device The Bear 6000 machine is used for lifting, moving, rotating and plumbing all types of concrete slabs and precast concrete elements weighing up to 6,000 kg. It consists of an oil vacuum pump driven by an internal combustion engine or by an electric motor powered by a 400V mains power supply. The electrical version can be used in combined spaces and allows for it to be suspended underneath the overhead travelling crane.

Pick the accessories and ask about the product

Meet Bear6000

Are you wondering how it works? How does it look ? Is it as easy to use as we claim? Check the presentation and judge for yourself!

The most significant benefits

The machine should be suspended freely underneath the crane, forklift truck or by using a special attachment on a telescopic loader. A special traverse will be suspended under one or several vacuum suction pads. Excellent pulling power also makes the machine suitable for structures with which are porous. Concrete tongs allow you the same freedom as our vacuum devices do.

For who?

Bear 6000 will work in the following industries:

  • the paving industry (concrete slabs, paving slabs, vibropressed plates, kerbs, etc.).
  • the construction sector (prefabricated elements, floor slabs, hollow core slabs, cast stairs), including highway maintenance work on motorways (central barriers, plates for roads to access to the construction site) and building wholesalers (who unload large cubic components at the storage yard).
  • manufacturing (custom solutions).
  • melioration (concrete rings, septic tanks, passage pipes under roads).

Important advantages

  • robust construction S355 steel grade structure which is compact, and easy to transport and install.
  • fast configuration (e.g. using a number of various suction pads and adapting the machine to the forklift by using a beam to hang several suction pads beneath the crane).
  • transported elements can be suspended with immediate effect (one of which will be sucked into the material).
  • stringent stacking facilities with the need for joints (all of the side edges remain independent).
  • you can also work in restricted spaces because you have the option of separating the suction pads from the device base.
  • multitasking – assembly of various concrete elements, e.g. those which are sandblasted, flamed, with a high level of permeability with microchannels, as well as porous ones.
  • the most stringent level of occupational safety because of an installation of additional belts (with no risk of injury, with spine protection), and which comply with EN 13155 standards
  • occupational safety signalled by warning lamps, an audible signal and indicators positioned at the front of the machine.
  • a clogged filter and low fuel indicator (petrol version).

Configure and ask for the price

Ask about the product itself, or choose accessories and ask for a quote!

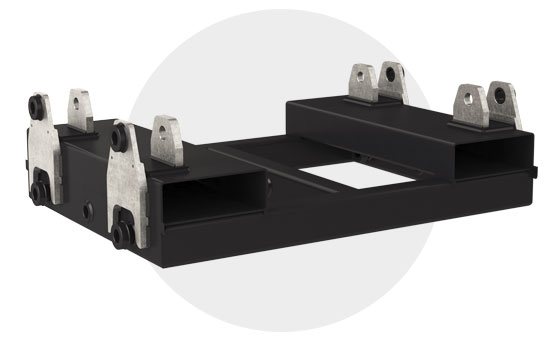

Adaptation for the Bear6000 forks

Adaptation for the Bear6000 forks

Beam for BEAR6000 (3 meter long)

Beam for BEAR6000 (3 meter long)

Several suction pads can be suspended on the beam.

Chains

Chains

A beam-pad holder for the BEAR6000

A beam-pad holder for the BEAR6000

Where suction pads can be suspended on the beam.

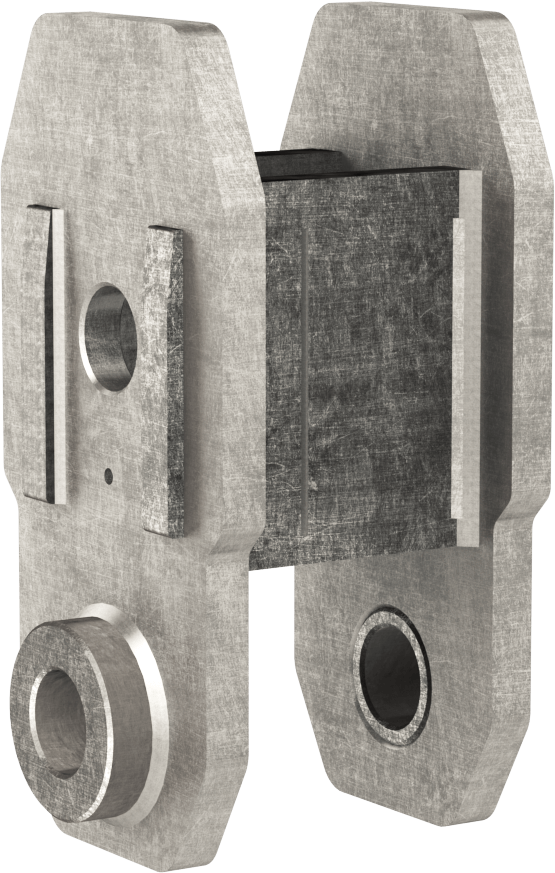

An upper handle for the BEAR6000

An upper handle for the BEAR6000

Used to suspend the vacuum device on the belt or the chain.

Handle for Bear and Wolf

Handle for Bear and Wolf

Suction pads (BEAR and WOLF) 100x70, max 1700 kg.

Suction pads (BEAR and WOLF) 100×70, max 1700 kg.

Suction pads (BEAR and WOLF) 100 × 50, max 1200 kg.

Suction pads (BEAR and WOLF) 100 × 50, max 1200 kg.

Suction pads (BEAR and WOLF) 80x40, max 700 kg.

Suction pads (BEAR and WOLF) 80×40, max 700 kg.

Suction pads (BEAR and WOLF) 50x30, max 300 kg.

Suction pads (BEAR and WOLF) 50×30, max 300 kg.

Suction pads (BEAR and WOLF) 60x15, max 130 kg.

Suction pads (BEAR and WOLF) 60×15, max 130 kg.

Suction pads 25x100 (WOLF and BEAR)

Suction pads WOLF 25×100, max. 520kg

Angular suction pad for curbs up to 290 kg (70x18x16) WOLF and BEAR

Angular suction pad for curbs up to 290 kg (70x18x16)

Show more accessories

    Configuration Summary

    Selected configuration

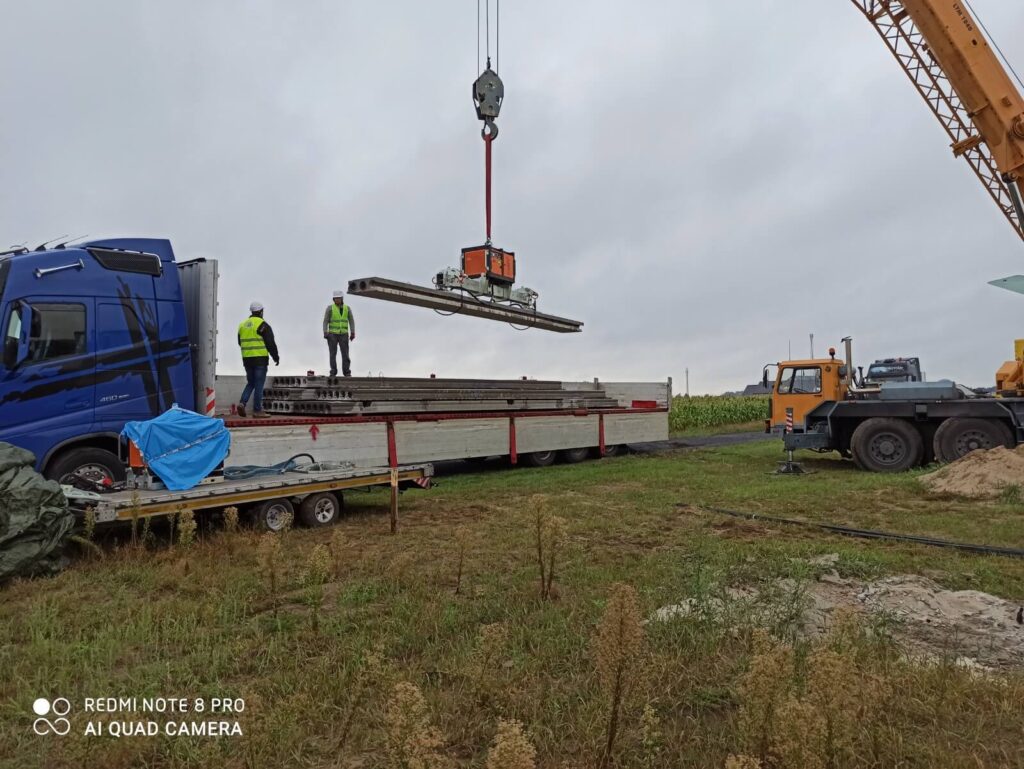

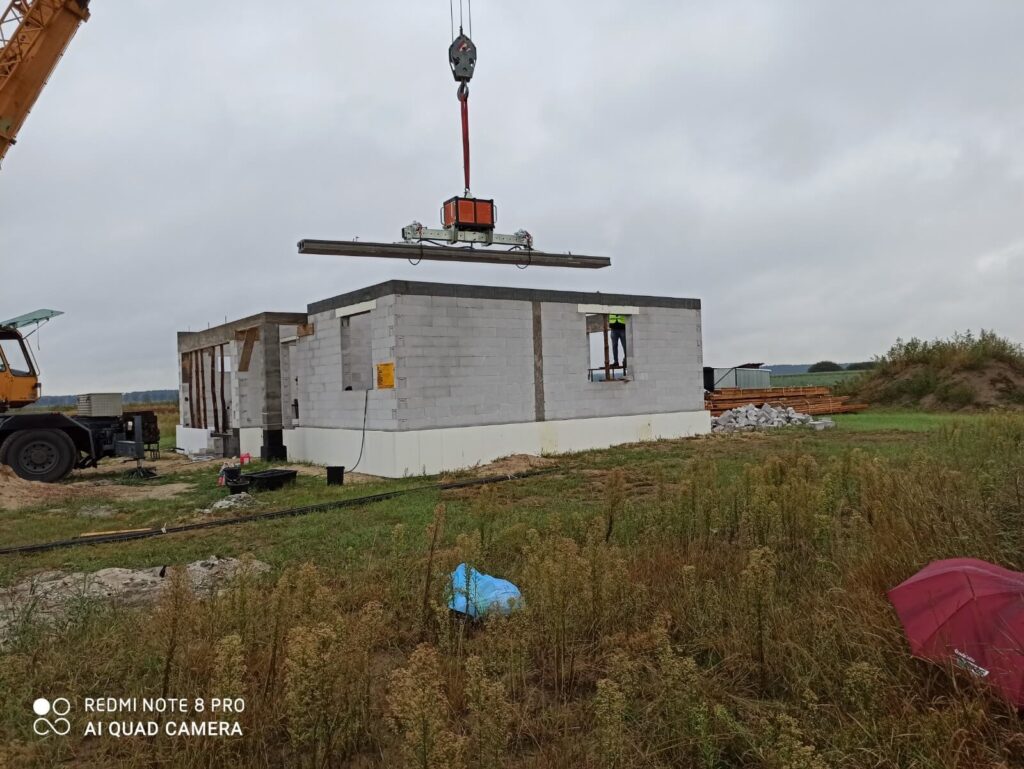

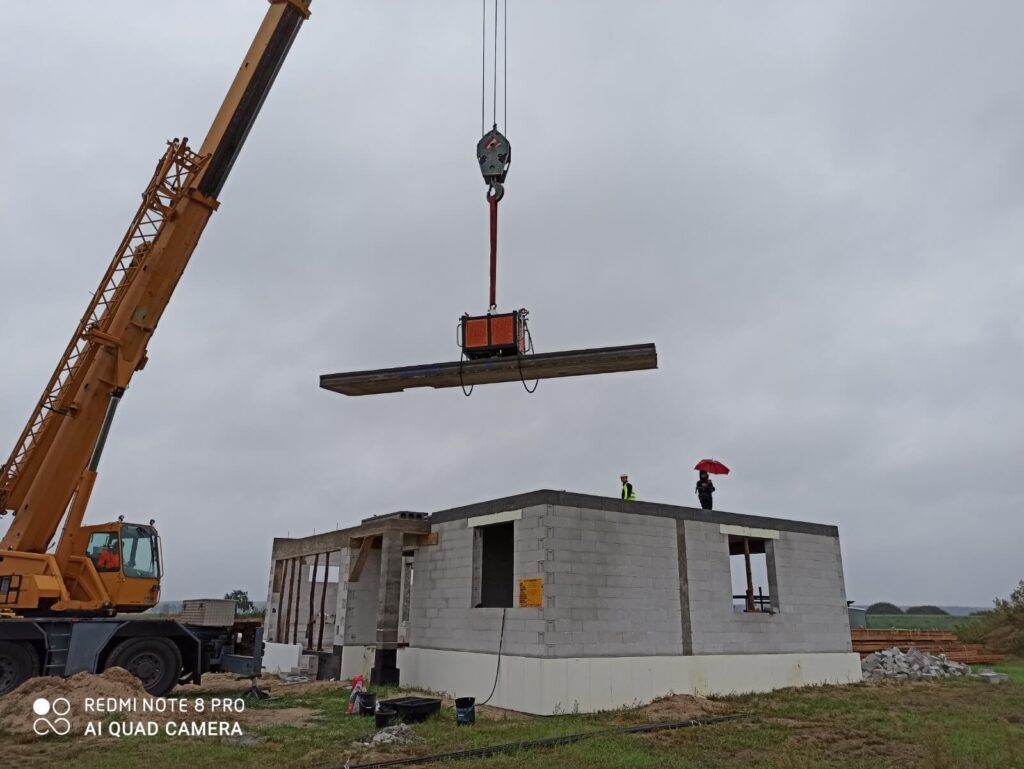

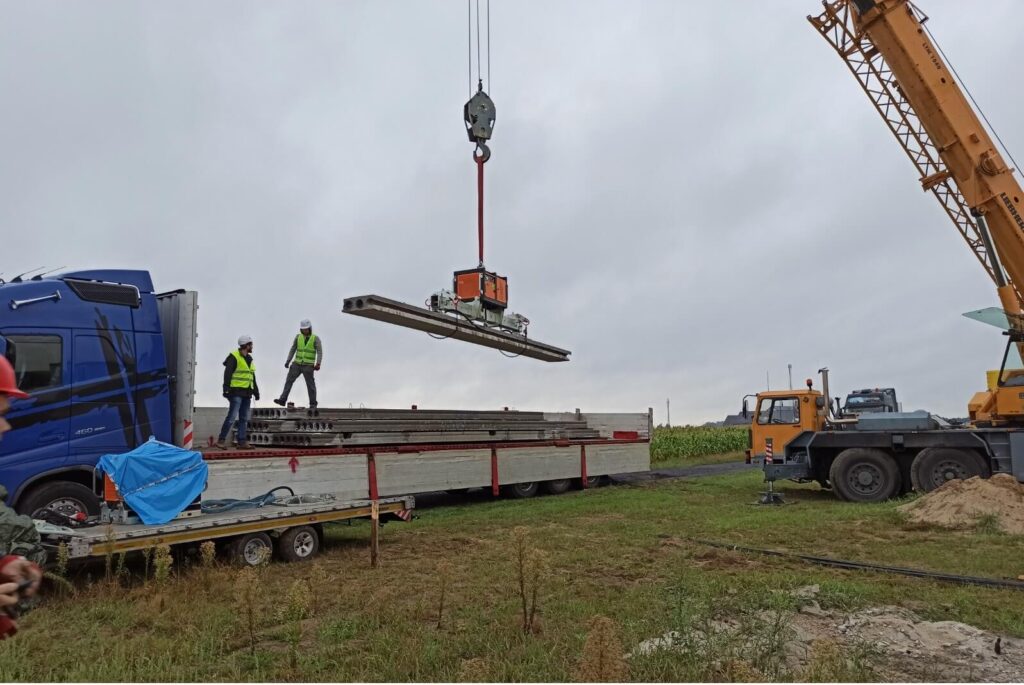

    BEAR6000 in action!
